GT150 Plastic pump
Wetted Part Material Polypropylene: 4.0 KG lyvinylidene fluoride: 5.0 KG Max. Flow Rate Rubber diaphragm: 56.0 LPM TP diaphragm: 58.7 LPM Teflon PTFE: 57.0 LPM Diaphragm Material Teflon Santoprene EPDM NBR Viton Max. Suction Lift Rubber: Dry 5.2 M / Wet 8.7 M Thermoplastic compound: Dry 5.2 M/ Wet 8.7 M Teflon PTFE: Dry 4.5M / Wet 9.3 M Parameter Liquid inlet: 1/2″ Liquid outlet: 1/2″ Air

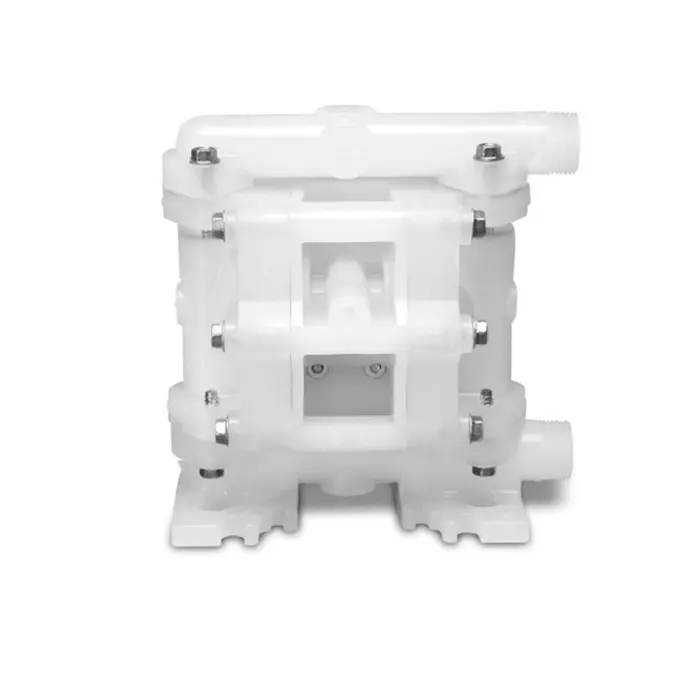

GT060 Plastic pump
Wetted Part Material Polypropylene: 2.0 KG lyvinylidene fluoride: 2.0 KG Max. Flow Rate Rubber diaphragm: 15.3 LPM TP diaphragm: 17.5 LPM Teflon PTFE:16.7 LPM Diaphragm Material Teflon Santoprene EPDM NBR Viton Max. Suction Lift Rubber: Dry 1.9 M / Wet 9.3 M Thermoplastic compound: Dry 1.9 M/ Wet 9.3 M Teflon PTFE: Dry 1.7M / Wet 9.6 M Parameter Liquid inlet: 1/4″ Liquid outlet: 1/4″

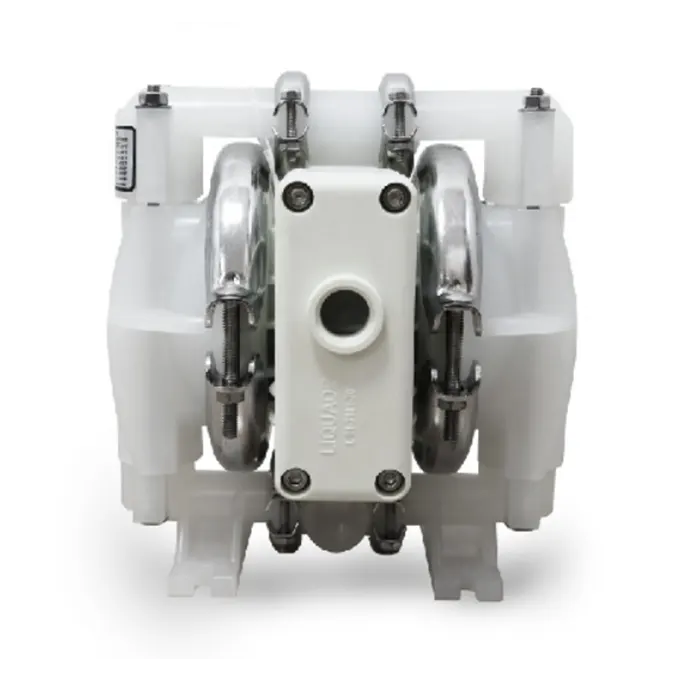

GT15 Plastic pump
Wetted Part Material Polypropylene: 4.2 KG lyvinylidene fluoride: 5.3 KG Teflon: 6 KG Max. Flow Rate Rubber diaphragm: 57.0 LPM TP diaphragm: 57 LPM Teflon PTFE: 53.6 LPM Diaphragm Material Teflon Santoprene EPDM NBR Viton Max. Suction Lift Rubber: Dry 6.3 M / Wet 9.55 M Thermoplastic compound: Dry 6.3 M/ Wet 9.8 M Teflon PTFE: Dry 5.5M / Wet 9.85 M Parameter Liquid inlet: 1/2″ Liquid

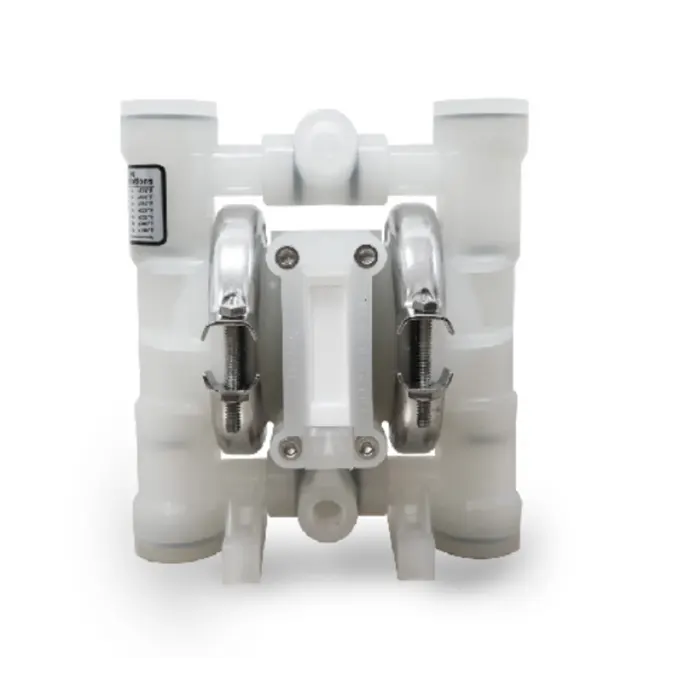

GT06 Plastic pump
Wetted Part Material Polypropylene: 1.5 KG lyvinylidene fluoride: 1.5 KG Max. Flow Rate Rubber diaphragm: 18.9 LPM TP diaphragm: 18.1 LPM Teflon PTFE:18.1 LPM Diaphragm Material Teflon Santoprene Max. Suction Lift Rubber: Dry 2.9 M / Wet 9.5 M Thermoplastic compound: Dry 3.1 M/ Wet 8.9 M Teflon PTFE: Dry 2.5M / Wet 8.9 M Parameter
