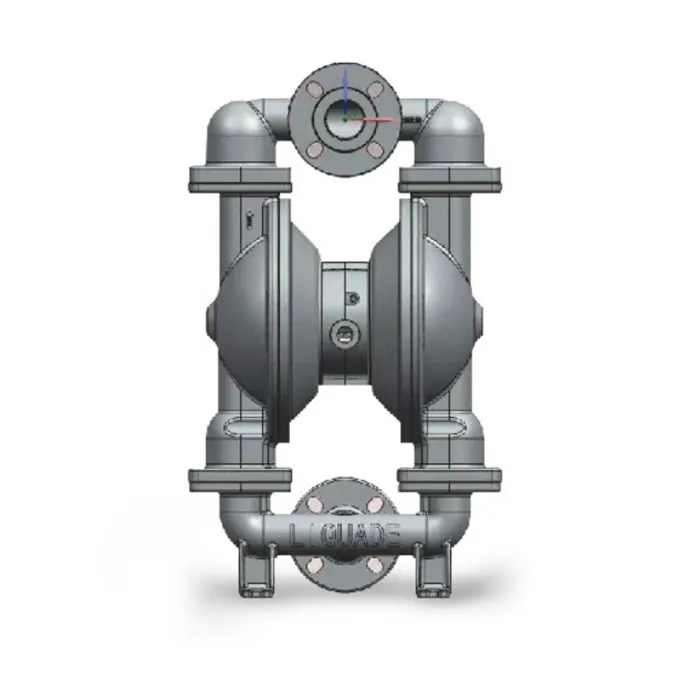

GT800 metal pump
Wetted Part Material Aluminum alloy: 55 KG (ATEX Option) SS316: 105 KG (ATEX Option) Cast iron: 93 KG (ATEX Option) Max. Flow Rate Rubber diaphragm: 939 LPM TP diaphragm: 927 LPM Teflon PTFE: 931 LPM Diaphragm Material Teflon Santoprene EPDM NBR Viton Neoprene Max. Suction Lift Rubber: Dry 6.4 M / Wet 8.6 M Thermoplastic compound: Dry 6.2 M/ Wet 8.6 M Teflon PTFE: Dry 4.9 M / Wet

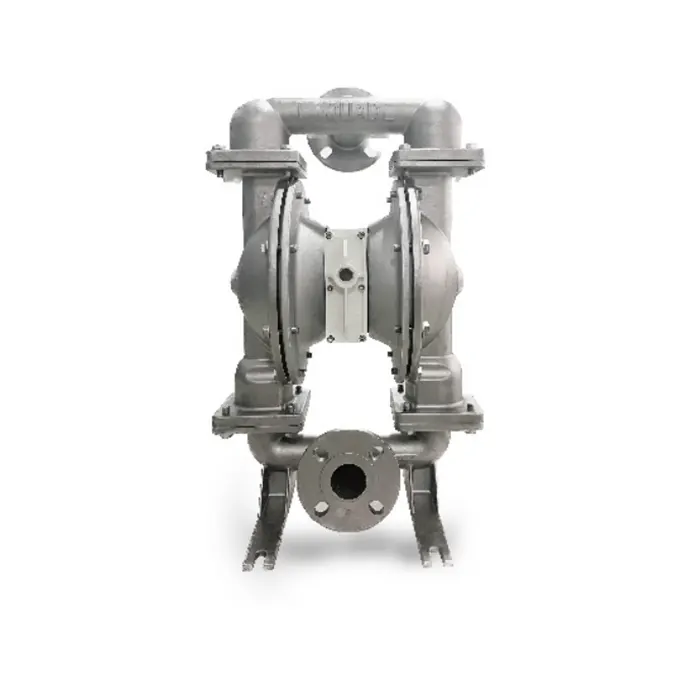

GT500 metal pump
Wetted Part Material Aluminum alloy: 55 KG (ATEX Option) SS316: 105 KG (ATEX Option) Cast iron: 93 KG (ATEX Option) Max. Flow Rate Rubber diaphragm: 609 LPM TP diaphragm: 605 LPM Teflon PTFE: 590 LPM Diaphragm Material Teflon Santoprene EPDM NBR Viton Neoprene Max. Suction Lift Rubber: Dry 7.4 M / Wet 9.0 M Thermoplastic compound: Dry 6.7 M/ Wet 9.0 M Teflon PTFE: Dry 6.9 M / Wet

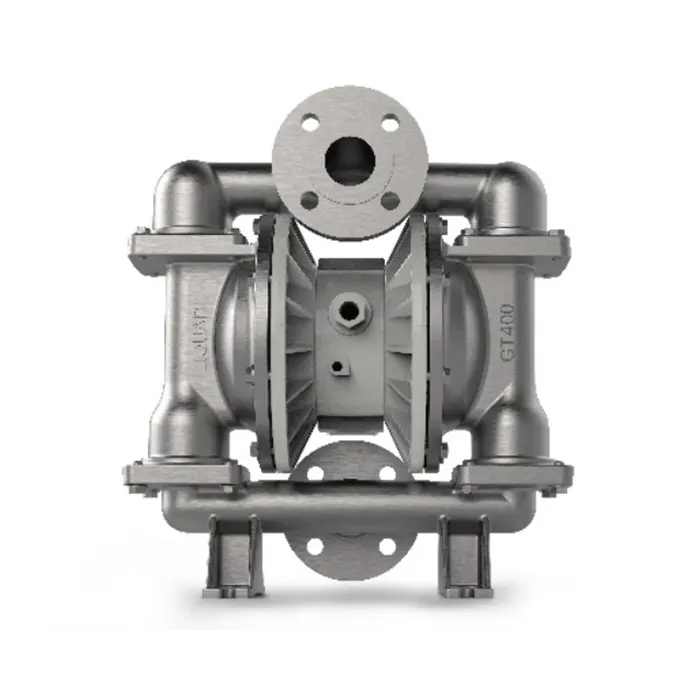

GT400 metal pump
Wetted Part Material SS316: 38 KG (ATEX Option) Max. Flow Rate Rubber diaphragm: 498 LPM TP diaphragm: 498 LPM Teflon PTFE: 480 LPM Diaphragm Material Teflon Santoprene EPDM NBR Viton Neoprene Max. Suction Lift Rubber: Dry 5.5 M / Wet 9.0 M Thermoplastic compound: Dry 4.9 M/ Wet 9.0 M Teflon PTFE: Dry 4.9 M / Wet 9.0 M Parameter Liquid inlet: 1.5″ Liquid outlet:

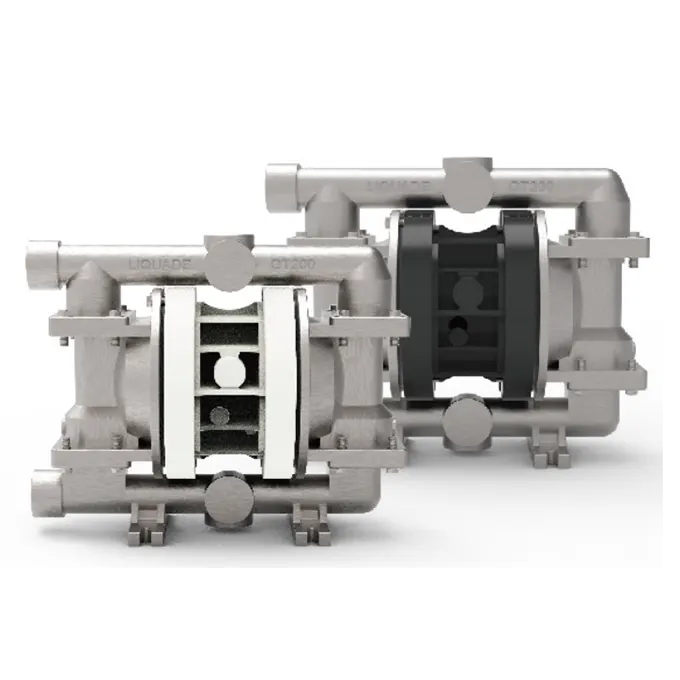

GT200 metal pump
Wetted Part Material SS316: 22.5 KG (ATEX Option) Max. Flow Rate Rubber diaphragm: 212 LPM TP diaphragm: 212 LPM Teflon PTFE: 185 LPM Diaphragm Material Teflon Santoprene EPDM NBR Viton Neoprene Max. Suction Lift Rubber: Dry 5.4 M / Wet 9.3 M Thermoplastic compound: Dry 5.4 M/ Wet 9.3 M Teflon PTFE: Dry 4.5 M / Wet 9 M Parameter Liquid inlet: 1″ (Threaded or Flange) Liquid outlet:
