Wetted Part Material |
|
|
Max. Flow Rate |
|
|
Diaphragm Material |
|
|
Max. Suction Lift |
|
|
Parameter |
|
 |
 |
 |
Related Projects

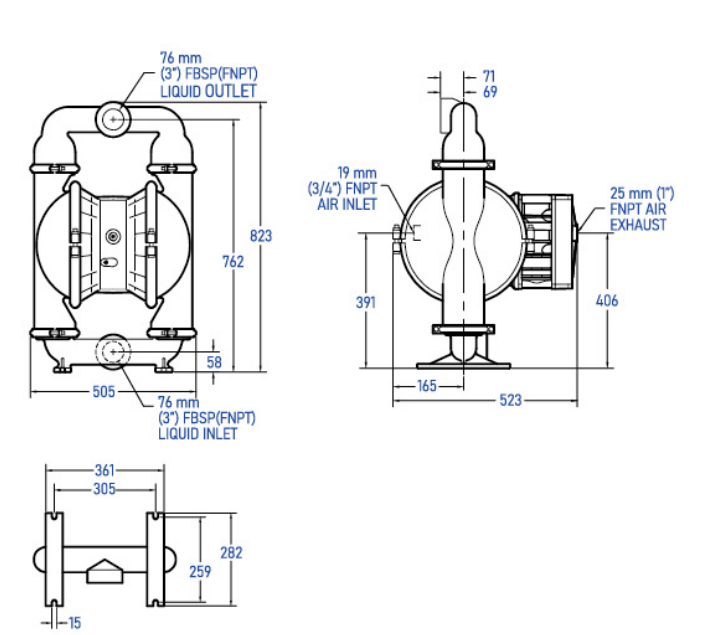

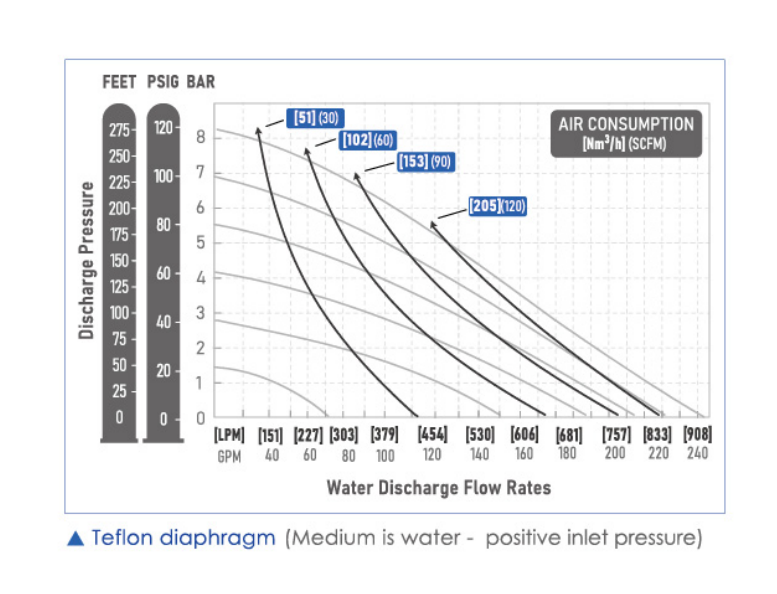

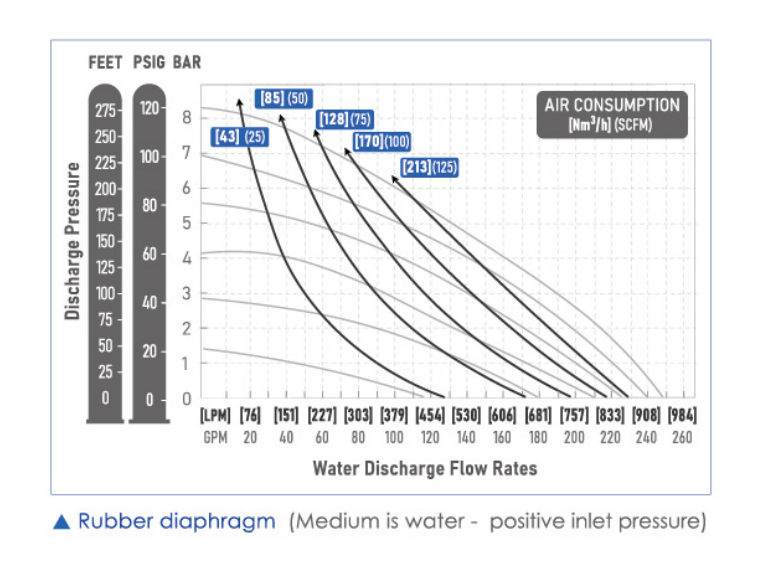

GT800 Plastic pump
Wetted Part Material Polypropylene: 95 KG (ATEX Option) lyvinylidene fluoride: 127 KG (ATEX Option) Max. Flow Rate Rubber diaphragm: 1045LPM TP diaphragm: 105LPM Teflon PTFE: 920LPM Diaphragm Material Teflon Santoprene EPDM NBR Viton Max. Suction Lift Rubber: Dry 6.3 M / Wet 9.0 M Thermoplastic compound: Dry 6.3 M/ Wet 9.0 M Teflon PTFE: Dry 6.3 M
GT500 Plastic pump
Wetted Part Material Polypropylene: 32KG (ATEX Option) lyvinylidene fluoride: 45 KG (ATEX Option) Max. Flow Rate Rubber diaphragm: 625LPM TP diaphragm: 615LPM Teflon PTFE: 615LPM Diaphragm Material Teflon Santoprene EPDM NBR Viton Max. Suction Lift Rubber: Dry 6.25 M / Wet 8.7 M Thermoplastic compound: Dry 5.55 M/ Wet 8.66 M Teflon PTFE: Dry 5.95 M / Wet 9.1 M Parameter Liquid inlet:
GT400 Plastic pump
Wetted Part Material Polypropylene: 19KG (ATEX Option) lyvinylidene fluoride: 27.5 KG (ATEX Option) Max. Flow Rate Rubber diaphragm: 455LPM TP diaphragm: 455LPM Teflon PTFE: 425LPM Diaphragm Material Teflon Santoprene EPDM NBR Viton Max. Suction Lift Rubber: Dry 5.5 M / Wet 9.1 M Thermoplastic compound: Dry 4.8 M/ Wet 9.3 M Teflon PTFE: Dry 5.75 M / Wet 9.3 M Parameter Liquid
GT200 Plastic pump
Wetted Part Material Polypropylene: 10 KG (ATEX Option) lyvinylidene fluoride: 15 KG (ATEX Option) Max. Flow Rate Rubber diaphragm: 222 LPM TP diaphragm: 216 LPM Teflon PTFE: 195 LPM Diaphragm Material Teflon Santoprene EPDM NBR Viton Max. Suction Lift Rubber: Dry 3.7 M / Wet 9.15 M Thermoplastic compound: Dry 3.5 M/ Wet 9.8 M Teflon PTFE: Dry 3.5M / Wet 8.65 M Parameter Liquid inlet: 1″ Liquid outlet:
