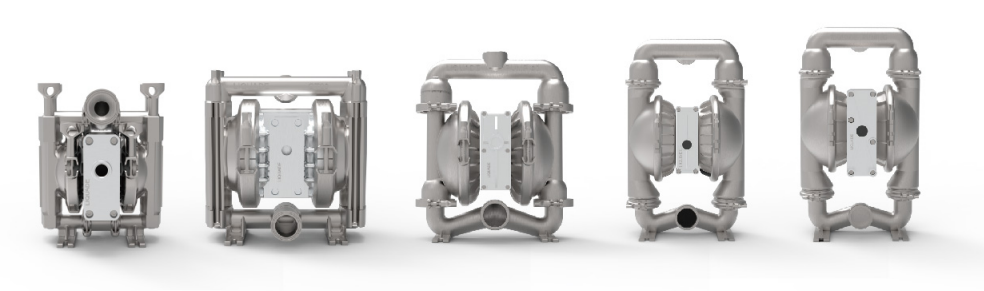

| FDA GT15 | FDA GT20 | FDA GT40 | FDA GT50 | FDA GT80 |
| 316 | 316 | 316 | 316 | 316 |
| Rubber diaphragm:57.7LPM | Rubber diaphragm:169LPM | Rubber diaphragm:287LPM | Rubber diaphragm:698LPM | Rubber diaphragm:926LPM |
| TP diaphragm:57.5LPM | TP diaphragm:171LPM | TP diaphragm:306LPM | TP diaphragm:719LPM | TP diaphragm:901LPM |
| Teflon PTFE diaphragm:53.5LPM | Teflon PTFE diaphragm:166LPM | Teflon PTFE diaphragm:294LPM | Teflon PTFE:721LPM | Teflon PTFE:915LPM |
| Rubber:Dry:5.9M
Wet:9.55M Thermoplastic composit:Dry:5.2M Wet:9.6M Teflon PTFE:Dry:4.9M Wet:9.51M |
Rubber:Dry:5.2M
Wet:9.0M Wet:9.0M Teflon PTFE:Dry:5.5M Wet:9.1M |
Rubber:Dry:5.9M
Wet:8M Wet:8.8M Teflon PTFE:Dry:6.4M Wet:9.3M |
Rubber:Dry:6.95M
Wet:8.6M Wet:8.6M Teflon PTFE:Dry:6.7M Wet:9M |
Rubber:Dry:6.6M
Wet:8.6M Themoplastic composit:Dry:6.3M Wet:8.6M Teflon PTFE:Dry:6.2M Wet:8.6M |
| Liquid inlet: | Liquid inlet: | Liquid inlet: | Liquid inlet: | Liquid inlet: |
| 25mm(1″)TRI-CLAMP | 38mm(1-1/2”)TRI-CLAMP | 51mm(2″)TRI-CLAMP | 64mm(2-1/2″)TRI-CLAMP | 76mm(3″)TRI-CLAMP |
| Liquid discharge: | Liquid discharge: | Liquid discharge: | Liquid discharge: | Liquid discharge: |
| 25mm(1″)TRI-CLAMP | 38mm(1-1/2″)TRI-CLAMP | 51mm(2””)TRI-CLAMP | 64mm(2-1/2″)TRI-CLAMP | 76mm(3″)TRI-CLAMP |
| Air inlet: | Air inlet: | Air inlet: | Air inlet: | Air inlet: |
| 6mm(1/4”) | 6mm(1/4”) | 13mm(1/2″) | 19.05mm(3/4″) | 19mm(3/4″) |
| Max.discharge pressure: | Max.discharge pressure: | Max.discharge pressure: | Max.discharge pressure: | Max.discharge pressure: |
| 8.62BAR (125 PSI) | 8.62BAR (125 PSI) | 8.62BAR (125 PSI) | 8.62BAR(125 PSI) | 8.62BAR (125 PSI) |
| Max.size solids: | Max.size solids: | Max.size solids: | Max.size solids: | Max.size solids: |
| 1.59mm(1/16″) | 3.2mm | 4.8mm(3/16″) | 6.4mm(1/4″) | 9.5mm(3/8″) |
| Finishing: | Finishing: | Finishing: | Finishing: | Finishing: |
| Surface Finish:Ra 5.1 μm | Surface Finish:Ra 5.1 μm | Surface Finish:Ra 5.1 μm | Surface Finish:Ra 5.1 μm | Surface Finish:Ra 5.1 μm |
